Product Description
LN-NM-8P is a full Gigabit Division-type Ethernet switch developed independently, which provides 8 10/100 / 1000M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.

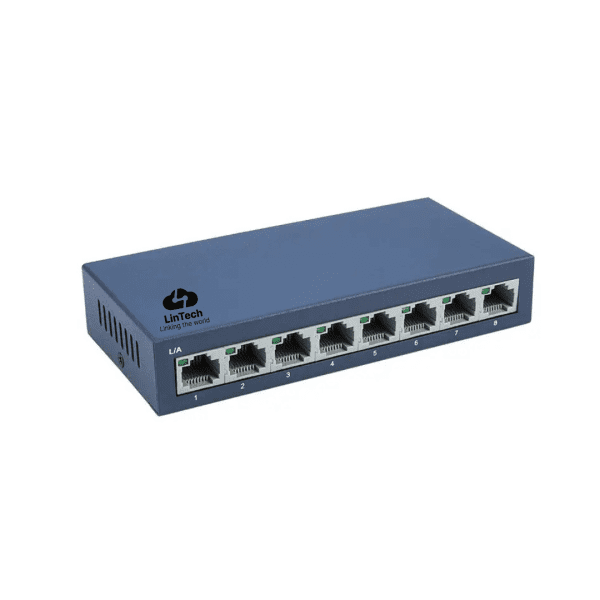

Product model and appearance
LN-NM-8P | ● 8*10/100/1000M RJ45 ports ● Backplane Bandwidth: 16Gbps ● Packet Forwarding Rate:11.9Mpps ● Port supports MDI / MDIX automatic flip function |
Product performance
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
easy to use
● Plug and play, no need to configure, simple and convenient
● Users can use the power indicator (Power), port status indicator (Link/Act)
Physical Characteristics
Model | LN-NM-8P |
Downlink ports | 8*10/100 /1000M RJ45 ports |
Bandwidth | 16Gbps |
Packet Forwarding Rate | 11.9Mpps |
MAC address | 4K |
LED indicator | Link / Act，Power |
transmission mode | IEEE802.3 full duplex flow control and backpressure half duplex flow control |
Standard protocol | IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE |
| Size | 139mm × 66mm ×26mm |
Power supply | AC 100~240V 50/60HZ |
working temperature | Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: – 20℃～70℃, Humidity: 5% ~ 95% |
ordering information
LN-NM-8P | 8*10/100/1000M RJ45 Ports |
